Assembled Board and Product Testing

At FORTÉ DESIGNS in Longmont, Colorado, we are able to offer the comprehensive testing of fiber optic modules and assembled printed circuit boards. We have a complete range of high-frequency and fiber optic test equipment that we can use to verify your finished product’s requirements.


Testing Services and Capabilities

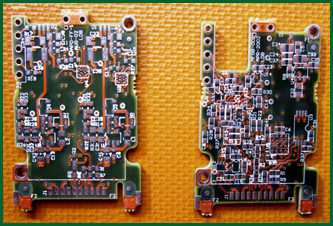

Our testing services are primarily geared to verify the performance of fiber optic modules and assembled printed circuit boards operating at up to 10Gb/s or 10 GHz.  We are also able to make comparison testing of individual designs.  The final test result will yield a comparison of the units and point out areas where they differ or where they can be improved.

Test Equipment

We are proud to offer the following equipment to verify the performance of your finished design:

Agilent/HP 70843C Error Performance Analyzer with Option UHF (Agilent Actually)
HP 70340A Microwave Clock Source 1GHz-20GHz
HP 70820A 40GHz Microwave Transition Analyzer Option UF3 with:
   • (2) HP 0955-0970 9953.28 Mb/s (OC-192) Bandpass Filters
   • (2) HP 0955-0731 2488.32 Mb/s (OC-48) Bandpass Filters

HP 3325B 20 MHz Function Generator with Option 001 (10MHz Reference Output) and Option 002 (High Voltage)
HP 8153A Lightwave Multimeter with:
   • (1) HP 81531A (800nm-1700nm) Optical Power Sensor (with [1] HP 81000FI FC Optical Connector Interface)
   • (1) HP 81530A (450nm-1020nm) Optical Power Sensor (with [1] HP 81000FI FC optical Connector Interface)


HP 83480A Digital Communication Analyzer with Option 100 (enhanced 12.5GHz trigger) with Two Optical (1000nm-1600nm) and Electrical Input Heads with:    • (1) HP83485B 30GHz/40GHz O/E w/Opt 040 (9.953Gb/s 4th Order Optical Filter) with:        - (2) HP 81000FC Optical and (1) APC 3.5mm plus (1) APC 2.4mm Electrical Interface Connectors    • (1) HP 83485A 20GHz/20GHz O/E w/Opt 034 (2.488Gb/s Optical Filter) with:        - (2) HP 81000FC optical and (2) APC 3.5mm Electrical Interface Connectors   HP 3478A Digital Multimeter HP 3488A Switch/Control Unit with Two Plug-Ins (Two Slots Are Free/Open) with:    • (1) HP 44470A Multiplexer with Wire Connector Interface    • (1) HP 44474A Digital I/O with Wire Connector Interface    HP 6624A System DC Power Supply (Four Outputs with Sense Leads for Voltage Leveling)
